Before starting the procedure, you need to check if there is an external receiver connected, such as the following:
If present, please see the following guide:
https://1control.zendesk.com/hc/it/articles/13603643062684-HE-3-BiSecur-HE-3-MCX-BiSecur
Otherwise, proceed as follows:
- Start copying until you get to the "Verify Operation" screen
- Press the menu button on the top right to enter manual recording as in the image below
- Move both sliders to 5 seconds

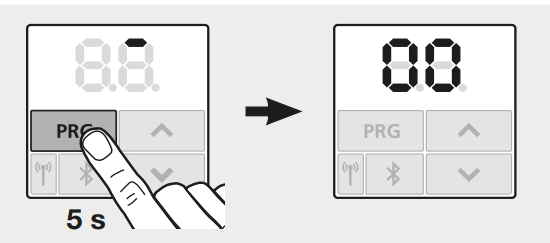

- On the control unit, press the " PRG" button for 5 seconds to access the programming menu:

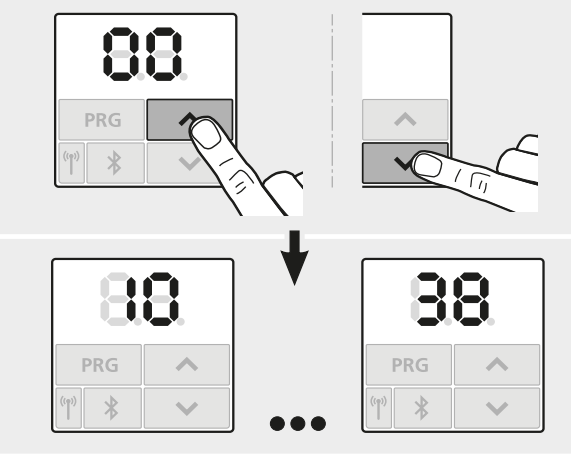

- Using the arrow keys navigate the menu until you get to the section " 11'
- Press the prog button for about a second, the display starts flashing
- In the 1Control app press the " Transmit Source Code " button
- A dot should appear on the display indicating correct signal reception.
If it doesn't show, increase the transmission time and try again. - Press the prog button again for about 1 second
- Wait about 1 minute
- Press " Transmit opening signal ", the garage should open
If after the last step the garage is not activated, repeat the copy and the indicated procedure again.
