To correctly install the sensor, follow the procedures below
Configuration:
- Remove the plastic tab from the battery compartment
- Open the 1Control app and go to the “Manage your devices” section in settings.
- Select the SOLO device and then the input to which you want to associate the opening sensor.
- Click “Opening Sensor” and follow the instructions in the app.
Positioning:

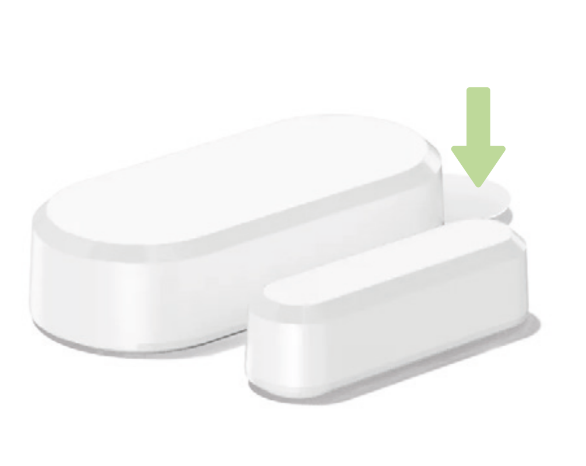

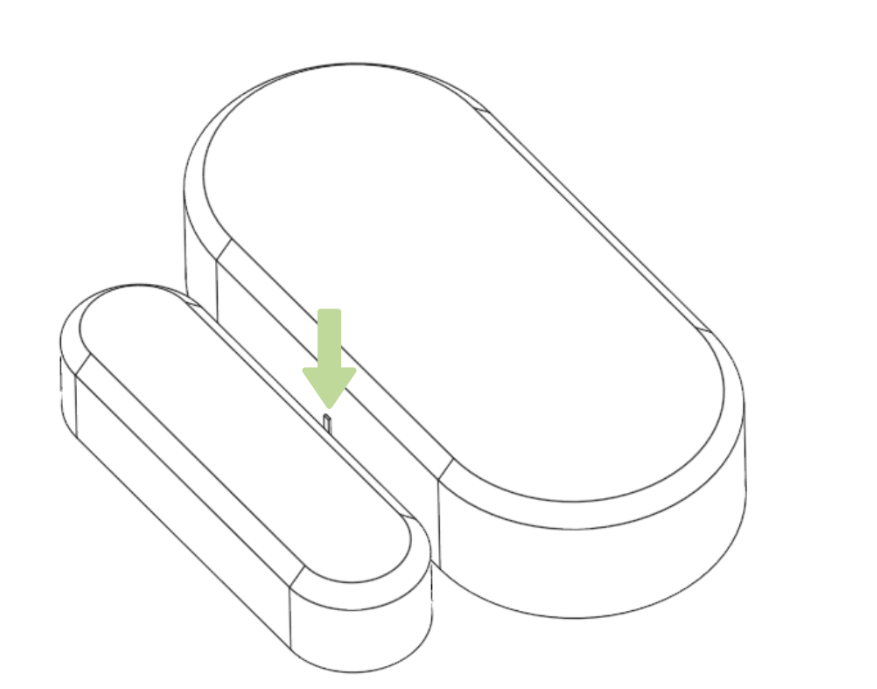

Make sure that when the door is closed the sensor components are close together. In particular, it is important that the smaller sensor component is close to the reference notch of the larger component as shown in the figure.
Conversely, when the door is open the sensor components must be distant from each other.
Also make sure the door sensor is within 15 meters of your 1Control LINK so that it can be detected.
