Head

GEN1

Start the procedure for copying the remote control on the app

1. 1. You arrive at the Check Operation screen

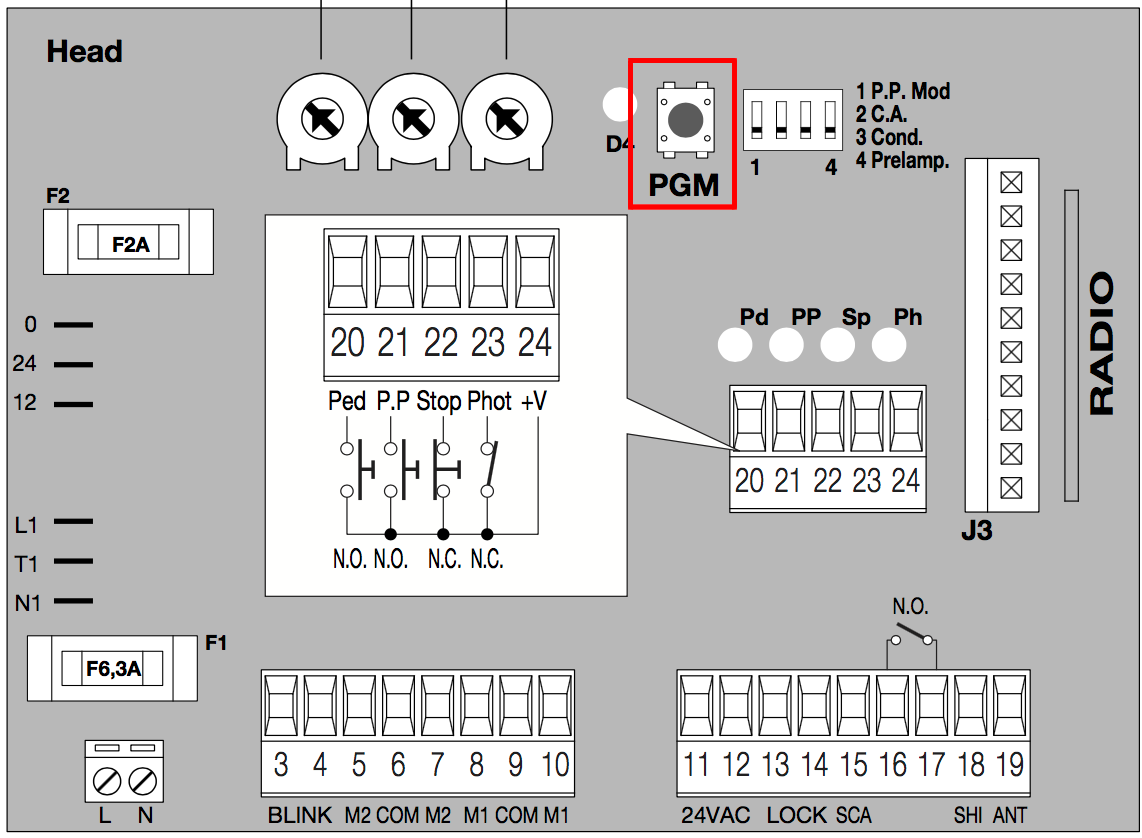

2. Press the PGM button on the control unit for 1 second, the LED starts flashing



3. Press the OPEN / CLOSE button on the app
   Wait 10 seconds for the end of programming
   For the second channel press PGM for 2 seconds 2 times consecutively



GEN2

To complete the copy of your remote control

1) Start copying until the "Operation Check" screen
2) Press the menu key at the top right to enter manual recording as shown below
3) Move the upper slider to 4 seconds

4) Press the PGM button on the control unit for 1 second, the LED starts flashing

5) In the app press Send Opening Signal

Wait 10 seconds for the end of programming
For the second channel press PGM for 2 seconds 2 times consecutively
