XR2

To complete the copy of a DS radio control , follow the procedure as indicated

1. Start copying until the "Check Operation" screen
2. Press the menu key at the top right to enter manual recording as shown in the image below
3. Move the slider above 4 seconds

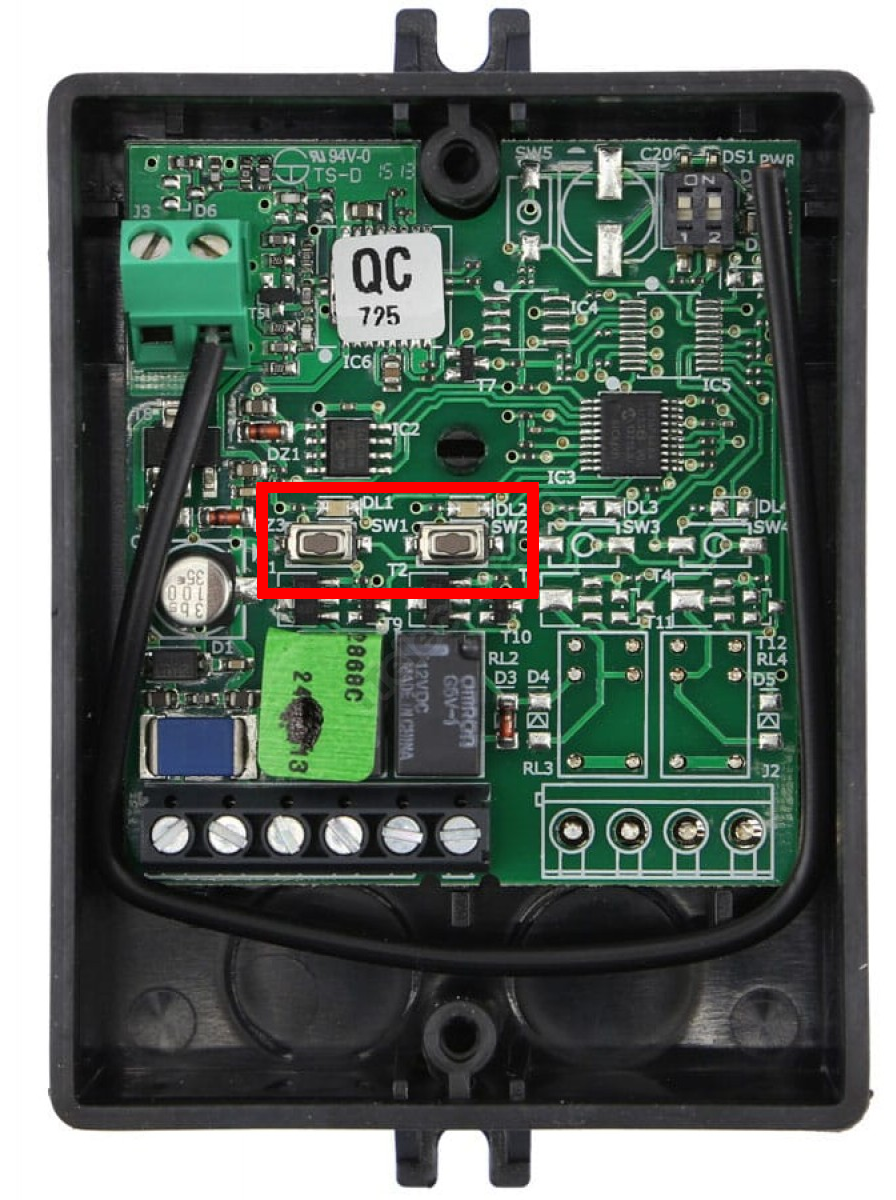

4. On the receiver, press the SW1 button (or SW2 depending on the connected output) for about one second until the LED adjacent to the button starts flashing slowly




5. At this point, press the Transmit opening signal button on the app






   To complete the copy of an SLH remote control , follow the procedure as indicated

   1. Start copying until the "Check Operation" screen
   2. Press the menu key at the top right to enter manual recording as shown in the image below
   3. Move the slider above 4 seconds

   4. Press the "Send source code" button in the app (the second from the top, in blue)
      Then on the receiver the SW1 button


   5. The led corresponding to the channel used on the receiver starts flashing slowly for 5 sec.
   6. Within 5 seconds, press the "Transmit opening signal" button in the app (the first at the top, in blue)

) The led on the board) will light up steadily for 1 second and then go off, indicating that memorisation has been completed.




To complete the copy of an LC radio control , follow the procedure as indicated

1. Start copying until the "Check Operation" screen
2. Press the menu key at the top right to enter manual recording as shown in the image below
3. Move the slider above 4 seconds



4. On the receiver, press the SW1 button (or SW2 depending on the connected output) for about one second until the LED adjacent to the button starts flashing slowly
5. Within 5 seconds, press the "Transmit opening signal" button in the app
6. The LED on the receiver will light up steadily for 1 second, indicating that memorisation has been completed
